Duratrax DTXC2300 Power Pole Connector (2 Pair)

This is a Duratrax DTXC2300 Connector (2 Pair). Features:
Low resistant connectors consisting of lightweight polycarbonate housings and springs loaded silver plated contacts. Contact resistance is 3 times less than Dean’s pin and 5 times less than Tamiya plug connectors.
Super-Cons self cleaning spring loaded design gives a positive, low resistance connection which results in increased performance and longer run time.
Electronic speed controls will also operate cooler and last longer.
Modular housing are impossible to install backwards, thus eliminating the possibility of reversing polarity.

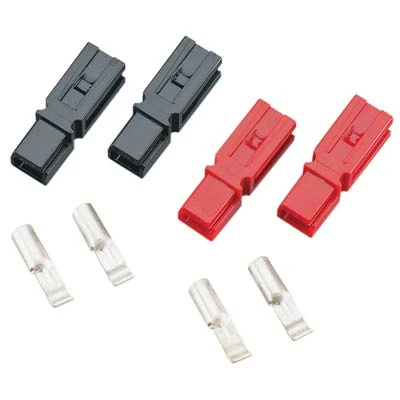

Includes:
Two Red Connectors (plastic)
Two Black Connectors (plastic)
Four Silver Contacts
Instructions
Specifications:
Average Contact Resistance (mated pair): 600 microhms (5/8 #12awg)
Weight of mated pair: 0.115oz
Current Rating (2 pair): 30amp #12awg
Voltage Rating: 600V
Wire Size: #12-16awg
Note:
These connectors are not male or female, so they can plug into each other. This package will do any combination of a pair. This would be two batteries or the motor and battery for a speed control or even a speed control and battery.
An example is: If you have 3 sets of these connectors, you could put connectors on (speed control motor and battery), as well as four batteries.
These connectors are soldered to the wires.

Condition: Factory New
Operational Status:

Functional

Original Box: Yes

Manufacturer: Duratrax
Model Number: DTXC2300
MSRP: $5.99

Category 1: Other Toys
Category 2: Radio Control Toys

The Trainz SKU for this item is P12200091.

Trainz Product Id: 12200091
